Layers

Background and Foreground / Overlay

You can display any data content inside your video using the Eyeson layer service. There are two ways to add an image:

1. Generate and send the image file directly, or
2. provide a public URL to the image.

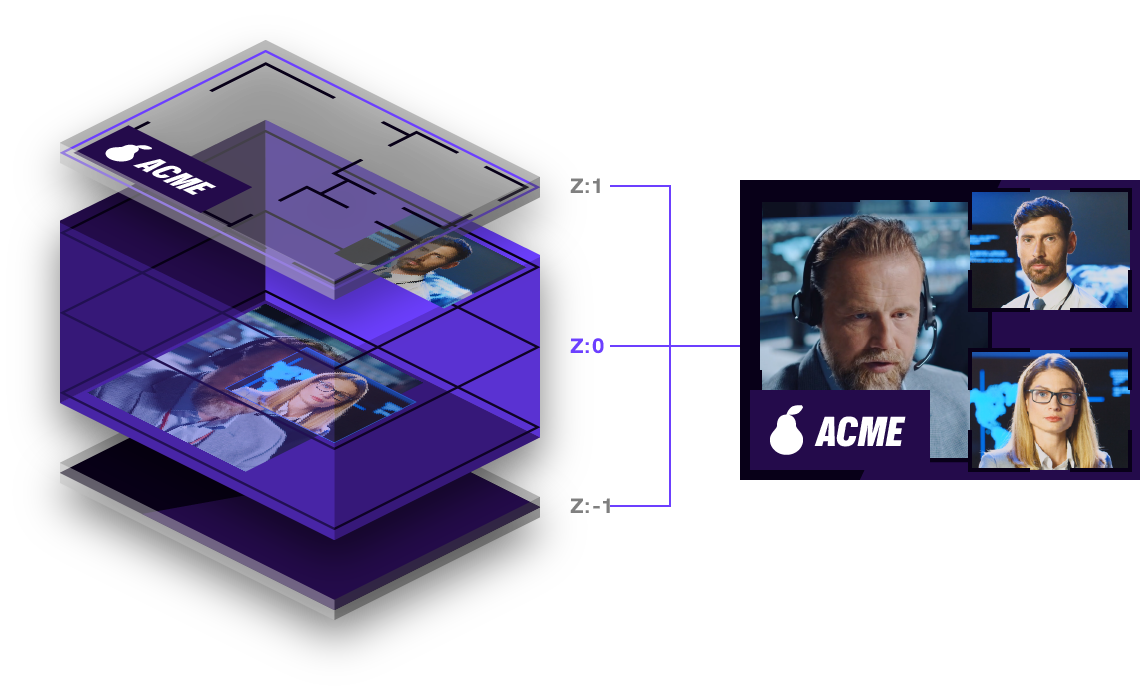

Each image is placed on one of two layers:

• Background (z-index=-1): has no transparency, so JPEG images work fine here.
• Foreground / overlay (z-index=1): use a PNG or WebP image with an alpha channel (transparency), or an SVG file, so the video stays visible behind the transparent areas. Don't use JPEG files, as they do not support transparency.

Match the image size to the room resolution listed below. Overlay images larger than this resolution are rejected.

Room Mode	Resolution (pixels)	Description
Default	1280x960	960p Standard
Widescreen	1280x720	HD Widescreen

tip

When using layers, you may want to disable SFU mode in the default room configuration, as it will transport individual streams for single and two participants without showing layer media.

Add Content to Layer

Supported image types are: PNG, WebP, SVG, and JPEG. Background layer has no transparency, foreground layer / overlay can be transparent.

The positioning of images smaller than the call resolution of either 1280x960 pixels (960p in default) or 1280x720 pixels (HD in widescreen mode) follows the following rule:

• Background: The image will be centered and scaled to fit if too large.
• Foreground / Overlay: The image will be positioned in the left upper corner and not be scaled.

Overlay images larger than the resolution will throw an Error 400 BAD REQUEST.

info

Transparent parts of an image in the background layer are rendered white.

POST /rooms/`ACCESS_KEY`/layers
RESPONSES 201 CREATED, 400 BAD REQUEST, 404 NOT FOUND, 410 GONE
RECOMMENDED file or url,  z-index

file

Type: File [binary] (optional)
File upload.

Example Req/Res: Overlay with local File

curl

export ACCESS_KEY=...
curl -X POST \
  -F "file=@path/to/local/file.png" \
  -F "z-index=-1" \
  "https://api.eyeson.team/rooms/$ACCESS_KEY/layers"

node sdk

import fs from 'node:fs';
import Eyeson from '@eyeson/node';

const eyeson = new Eyeson();
const user = await eyeson.getUser(accessKey);
const imageBuffer = await fs.promises.readFile('./file.png');
await user.sendLayer(imageBuffer, Eyeson.layerBackground);

go sdk

import (
  "os"
  eyeson "github.com/eyeson-team/eyeson-go"
)
accessKey := "..."
userService, _ := eyeson.NewUserServiceFromAccessKey(accessKey)
buffer, _ := os.ReadFile("./file.png")
userService.SetLayerImage(buffer, eyeson.PNG, eyeson.Background, nil)

php sdk

$accessKey = '...';
$eyeson = new Eyeson();
$layer = $eyeson->layer($accessKey);
$layer->sendImageFile('./file.png', Eyeson::$layerBackground);

Response

No Response

Example

• How to show Local Files
• How to use SVG Files
• How to Update Overlay Images

url

Type: URL (optional)
Public file URL.

Example Req/Res: Background Image with File URL

curl

export ACCESS_KEY=...
curl -X POST \
  -d "url=https://docs.eyeson.com/img/examples/overlay_example.png" \
  -d "z-index=1" \
  "https://api.eyeson.team/rooms/$ACCESS_KEY/layers"

node sdk

const eyeson = new Eyeson();
const user = await eyeson.getUser(accessKey);
await user.setLayer({
  url: 'https://docs.eyeson.com/img/examples/overlay_example.png',
  'z-index': Eyeson.layerForeground,
});

go sdk

accessKey := "..."
userService, _ := eyeson.NewUserServiceFromAccessKey(accessKey)
userService.SetLayer("https://docs.eyeson.com/img/examples/overlay_example.png",
  eyeson.Foreground, nil)

php sdk

$accessKey = '...';
$eyeson = new Eyeson();
$layer = $eyeson->layer($accessKey);
$layer->apply([
  'url' => 'https://docs.eyeson.com/img/examples/overlay_example.png',
  'z-index' => Eyeson::$layerForeground
]);

Response

No Response

Examples

• How to Add a Background Image
• How to Add an Overlay Image

z-index

Type: STRING (optional)
Default: 1
Assigns images to a specific layer.

Value	Description
1	Image is placed in the foreground
-1	Image is placed in the background

info

If you don't append a z-index parameter to your request, it is assumed to be 1.

id

Type: STRING (optional)
Layer id for relation control in observer "podium_update" event.

Delete Layer Content

DELETE /rooms/`ACCESS_KEY`/layers/`LAYER_INDEX` # clear layer, layer_index: -1 or 1
  RESPONSES 200 OK, 404 NOT FOUND, 410 GONE

Example Req/Res: Delete Background Layer Content

curl

export ACCESS_KEY=...
curl -X DELETE "https://api.eyeson.team/rooms/$ACCESS_KEY/layers/-1"

node sdk

const eyeson = new Eyeson();
const user = await eyeson.getUser(accessKey);
await user.clearLayer(Eyeson.layerBackground);

go sdk

accessKey := "..."
userService, _ := eyeson.NewUserServiceFromAccessKey(accessKey)
userService.ClearLayer(eyeson.Background)

php sdk

$accessKey = '...';
$eyeson = new Eyeson();
$layer = $eyeson->layer($accessKey);
$layer->clear(Eyeson::$layerBackground);

Response

No Response
